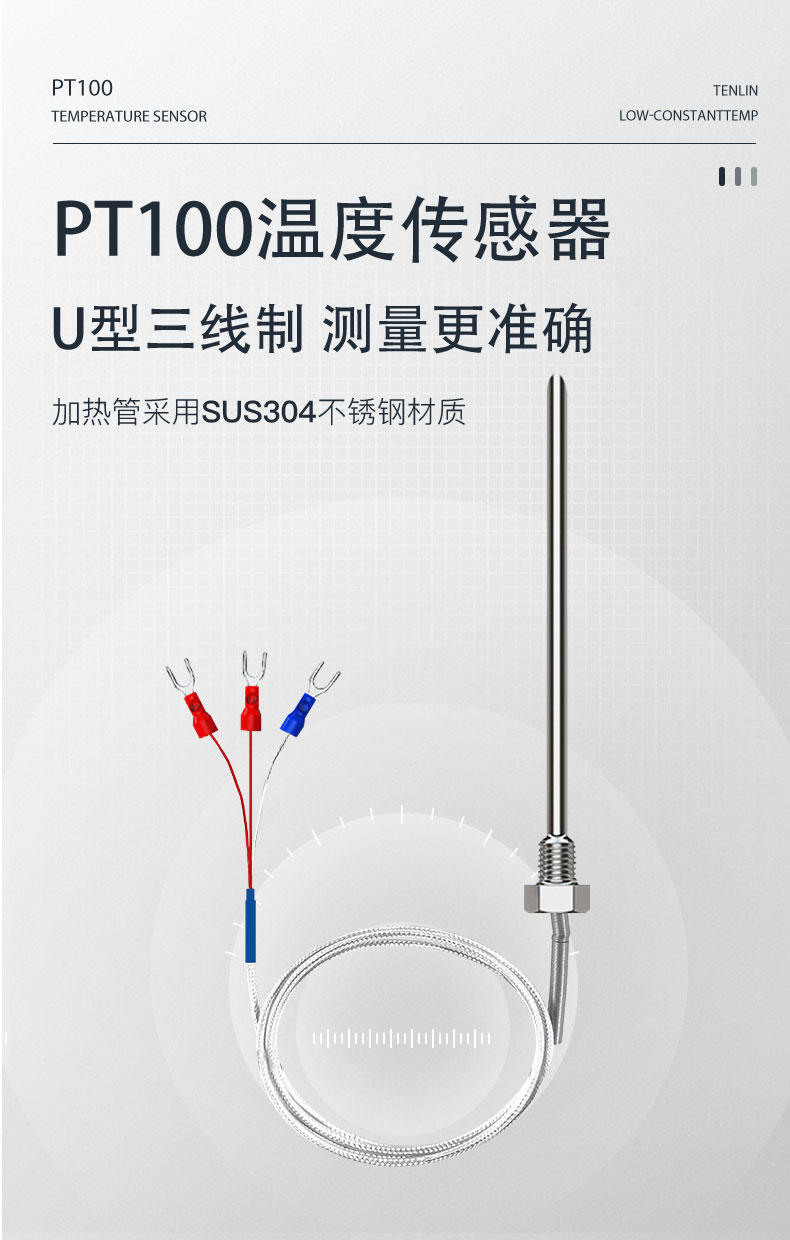

● special software research and development of self-made temperature control technology, equipped with high standard PT100 and all imported electronic components.
● the software system is convenient to correct the error between the displayed temperature and the actual temperature, and the temperature correction resolution is up to 0.01 ℃, so that the displayed temperature value is accurate.
● it has overtemperature protection and overtemperature ringing alarm. The overtemperature alarm temperature can be set, and the load can be cut off automatically in case of overtemperature.
● intelligent software has strong temperature stability. PID can automatically set parameters according to different media, and special users can also manually adjust parameters.
● use software to digitally lock the setting values of the control system to avoid misoperation by irrelevant personnel and ensure the correctness of the experimental process data.
● accurate temperature control makes the temperature in the working tank stable quickly.
● press the "power" key to turn off all functions of the instrument, but the instrument can also display the process of natural temperature rise and fall in the tank.

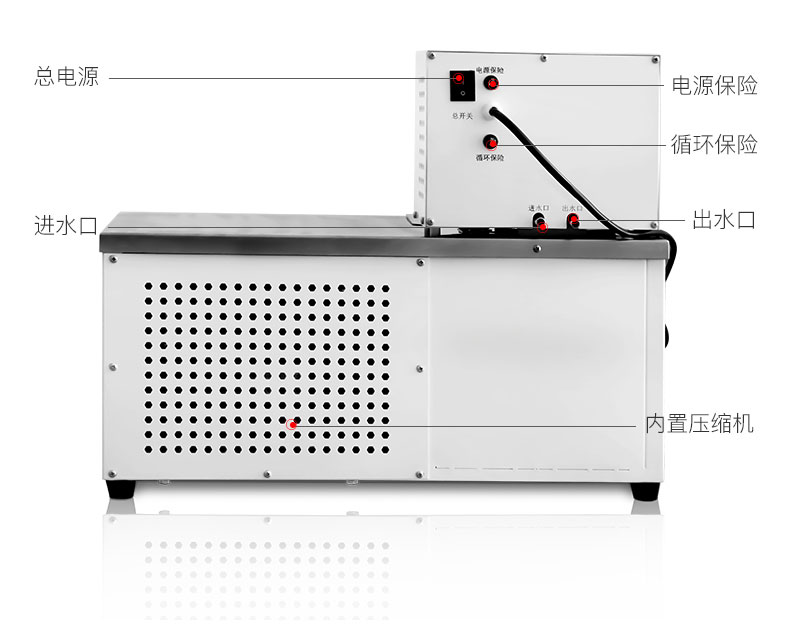

refrigeration system
● high efficiency fully enclosed compressor refrigeration, fast cooling speed, with multiple protections such as overheating and overcurrent.
circulatory system
● advanced internal circulation and external circulation system, the internal circulation makes the temperature uniform and stable, and the external circulation pump outputs 6l/min and 13l/min flow constant temperature liquid to establish the second constant temperature field outside the machine, which can also be used as a cold source to cool the experimental container outside the machine.
| Model | Temperature（℃） | Resolving power（℃） | Volatility（±℃） | Volume（L） | Slot opening（mm） | Groove depth（mm） | Flow（L/min） | Pwer（kw） | Overall dimension（mm） | Market price (yuan) |
| DCW-0506 | -5~100 | 0.01 | 0.05 | 6 | 180*160 | 150 | 6 | 0.8 | 580*380*460 | 8000 |
| DCW-1006 | -10~100 | 0.01 | 0.05 | 6 | 180*160 | 150 | 6 | 0.9 | 650*400*520 | 8600 |
| DCW-2006 | -20~100 | 0.01 | 0.05 | 6 | 180*160 | 150 | 6 | 1.0 | 650*400*520 | 9400 |
| DCW-3006 | -30~100 | 0.01 | 0.05 | 6 | 180*160 | 150 | 6 | 1.5 | 650*400*520 | 12500 |
| DCW-4006 | -40~100 | 0.01 | 0.05 | 6 | 180*160 | 150 | 6 | 2.1 | 600*430*720 | 21500 |
| DCW-0508 | -5~100 | 0.01 | 0.05 | 8 | 250*160 | 140 | 6 | 1.3 | 650*400*520 | 8800 |
| DCW-1008 | -10~100 | 0.01 | 0.05 | 8 | 250*160 | 140 | 6 | 1.5 | 650*400*520 | 9400 |
| DCW-2008 | -20~100 | 0.01 | 0.05 | 8 | 250*160 | 140 | 6 | 1.8 | 650*400*520 | 10200 |
| DCW-3008 | -30~100 | 0.01 | 0.05 | 8 | 250*160 | 140 | 6 | 2.0 | 650*400*520 | 13100 |
| DCW-4008 | -40~100 | 0.01 | 0.05 | 8 | 250*160 | 140 | 6 | 2.1 | 600*430*720 | 23800 |
| DCW-0510 | -5~100 | 0.01 | 0.05 | 10 | 180*160 | 200 | 6 | 1.3 | 650*400*520 | 9500 |
| DCW-1010 | -10~100 | 0.01 | 0.05 | 10 | 180*160 | 200 | 6 | 1.5 | 650*400*520 | 10100 |
| DCW-2010 | -20~100 | 0.01 | 0.05 | 10 | 180*160 | 200 | 6 | 1.8 | 650*400*520 | 10900 |
| DCW-3010 | -30~100 | 0.01 | 0.05 | 10 | 180*160 | 200 | 6 | 2.0 | 650*400*520 | 13700 |
| DCW-4010 | -40~100 | 0.01 | 0.05 | 10 | 180*160 | 200 | 6 | 2.1 | 600*430*720 | 29500 |
| DCW-0515 | -5~100 | 0.01 | 0.05 | 15 | 250*160 | 200 | 6 | 2.1 | 650*400*520 | 11200 |
| DCW-1015 | -10~100 | 0.01 | 0.05 | 15 | 250*160 | 200 | 6 | 2.2 | 650*400*520 | 12500 |
| DCW-2015 | -20~100 | 0.01 | 0.05 | 15 | 250*160 | 200 | 6 | 2.3 | 650*400*520 | 14500 |
| DCW-3015 | -30~100 | 0.01 | 0.05 | 15 | 250*160 | 200 | 6 | 2.4 | 650*400*520 | 19700 |
| DCW-4015 | -40~100 | 0.01 | 0.05 | 15 | 250*160 | 200 | 6 | 2.5 | 600*430*720 | 32800 |
| DCW-0520 | -5~100 | 0.01 | 0.05 | 20 | 250*160 | 300 | 6 | 2.1 | 720*395*610 | 15200 |
| DCW-1020 | -10~100 | 0.01 | 0.05 | 20 | 250*160 | 300 | 6 | 2.2 | 720*395*610 | 16500 |
| DCW-2020 | -20~100 | 0.01 | 0.05 | 20 | 250*160 | 300 | 6 | 2.3 | 870*520*700 | 18700 |
| DCW-3020 | -30~100 | 0.01 | 0.05 | 20 | 250*160 | 300 | 6 | 2.5 | 870*520*700 | 30500 |
| DCW-4020 | -40~100 | 0.01 | 0.05 | 20 | 250*160 | 300 | 6 | 2.7 | 870*520*700 | 37500 |
| DCW-0530 | -5~100 | 0.01 | 0.05 | 30 | 330*280 | 230 | 13 | 2.3 | 870*520*700 | 19800 |
| DCW-1030 | -10~100 | 0.01 | 0.05 | 30 | 330*280 | 230 | 13 | 2.4 | 870*520*700 | 21300 |
| DCW-2030 | -20~100 | 0.01 | 0.05 | 30 | 330*280 | 230 | 13 | 2.4 | 870*520*700 | 25500 |
| DCW-3030 | -30~100 | 0.01 | 0.05 | 30 | 330*280 | 230 | 13 | 2.5 | 870*520*700 | 31800 |
| DCW-4030 | -40~100 | 0.01 | 0.05 | 30 | 330*280 | 230 | 13 | 2.7 | 870*520*700 | 41000 |
Honor
TENLINHonorary
Patent certificate
Qualification certificate
Qualification certificate
High tech enterprise
Business license
Trademark registration certificate
quality management system certification
quality management system certification
Q:How to consult interested products？
A:(1)Telephone consultation（Call18921899789，15151007235，18932299088,The sales department answered the phone）； Telephone contact of Technology Department：18932292806（Wang Gong）Direct communication。 (2)Company fixed line：86 0515 81991818Communicate with us (3) Mailbox：jstenlin17@163.com。
Q:Is there any after-sales guarantee？
A:Don't worry about this. Jiangsu Tianling Instrument Co., Ltd. is an enterprise specializing in the research, development, production and sales of laboratory instruments and equipment. The company is committed to providing users with highly skilled and reliable laboratory instruments to meet the needs of users. The company has a R & D team composed of domestic high-quality talents, a relatively complete management system and a nationwide sales and service network.
Q:After sales process？
A:In case of product accessories and hardware problems, we can replace them for you free and send them by express mail. In case of software system problems, please contact the after-sales department in time. We will respond within 1 hour and provide you with high-quality solutions.
Q:How to deliver？
A:The logistics companies selected by our company have signed long-term cooperation agreements and guaranteed prices. The equipment is directly delivered to the door, and you do not need to go to the logistics point to pick up the goods. Moreover, you do not need to bear the responsibility for the customers with damaged equipment. The factory will directly replace the equipment for you, and the damage compensation will be settled through negotiation between the factory and the logistics company.
Q:What is the purchase process？
A:(1)It involves professional equipment and non-standard customization, so special personnel will answer the phone and transfer it to professional sales technical engineers for interactive communication (2)The sales engineer sends the product configuration list and the final price by email (3)Sign formal contracts, arrange orders, arrange delivery, and guide installation and commissioning (4)Technical guidance, professional training, technical Q & A, accessories ordering (5)After sales service and product upgrade
